Welcome
Backed by 22 years of rich industry experience, we have with us service support of experienced management and team who have in-depth knowledge regarding all types of Fibres and Spinning processes. This allows us to flawlessly handle emerging designing as well as manufacturing demands of Textile Testing Instruments. Our team of quality analysts and product research experts also provide their valuable contribution in correctly comprehending latest technological advancements and flawlessly imbibing them in the involved production activities.

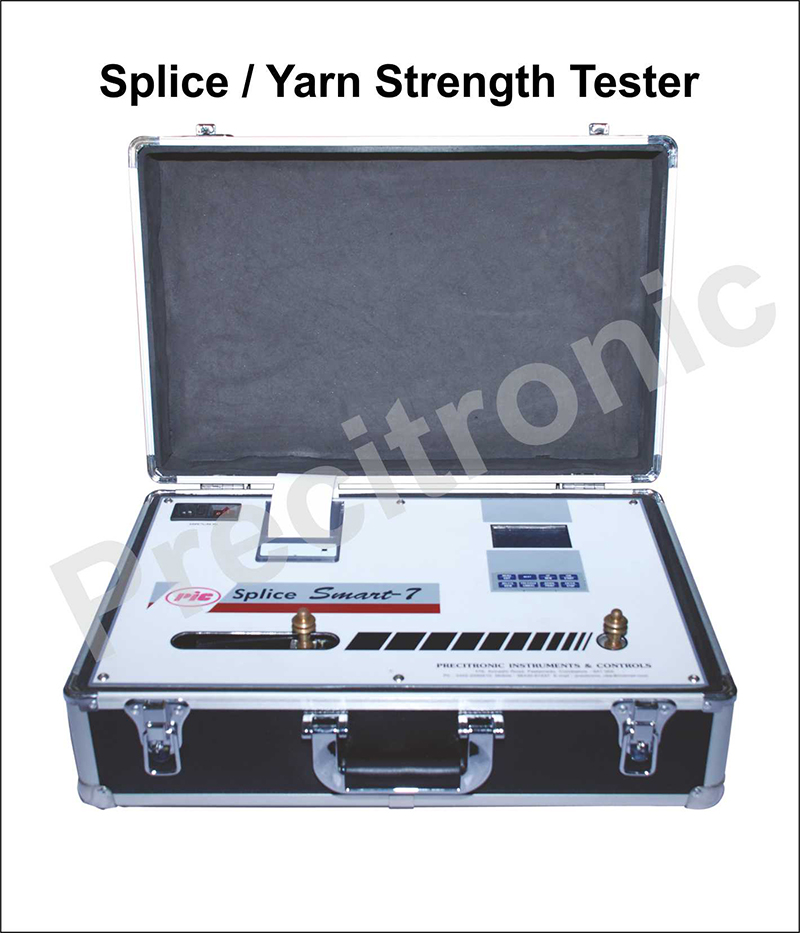

Yarn and Splice Strength Tester
Manufacturer and supplier of Yarn/Splice Strength Tester.
yarn1

Portable Splice Strength Tester



For The First Time In India, Precitronic has introduced a Portable Digital Splice Yarn Strength Tester with Printer. This instrument is electrically powered and works on CRE (Constant Rate of Elongation) achieved by high precision LM Guide and stepping motor with microprocessor control. Easy to use, gives accurate strength and elongation of splice or �yarn. One can take the instrument to the processing place such as spinning, winding, twisting etc. It also gives estimated RKM value of yarn.

Salient Features:

  1. Indigenously developed, affordable price and fast service
  2. Upto 250 nos. of samples can be tested in a test.
  3. Strength and Elongation are displayed following each test and can be printed in a mini dot matrix printer.
  4. Large LCD Screen and user friendly menu.
  5. THREE modes of testing is available
  6. Data transfer facility can be provided on request

Technical Data
  1. Measuring Range. � � � � � � � � � � � � � � � � � � � ��
  2. Strength: 0 to 2000 gm.� � � � � � � � � � � � � ��
  3. Elongation : 0.5 to 20%.
  4. Gauge Length : 250 mm.
  5. Speed : upto 1000mm per minute.
  6. Min. & Max. Strength and Elongation.
  7. Average value , SD and CV%.
  8. Gives force deviation % (between Parent and Spliced yarn).
  9. Estimated RKM Value of Yarn.

OPTIONAL
  1. 12V x 2 Battery and charger
  2. Instrument Trolley
yarn1

Yarn Splice Strength Tester

For the First time in India, Precitronic has introduced a Portable Digital Splice Yarn Strength Tester with printer. This Instrument is electrically powered and works on CRE (Constant Rate of Elongation) achieved by high Precision LM guide and stepping motor with microprocessor control. Easy to use, gives accurate strength and elongation of splice or yarn. Once can take the instrument to the processing place such as Spinning, Winding, Twisting, etc.,

It also gives estimated RKM Value for Yarn.

Features:

  • Indigenously developed, affordable price and fast service.
  • Up to 20 nos of samples can be tested in a test.
  • Strength and Elongation are displayed following each test and can be printed in a mini dot matrix printer.
  • Large LCD Screen and User Friendly Menu
  • Three Mode of Testing is available.

Technical Data:
  • Measuring Range:� Strength from -0-2000gm , Elongation from 0.5 to 20%
  • Gauge Length: 250 mm
  • Minimum Strength and Elongation
  • Maximum Strength and Elongation
  • Average Value
  • SD and CV %
  • Estimated RKM Value of Yarn
Optional:
  • �12V X 2 Battery and Charger
  • Instrument Trolley

yarn1
